Designed & built by I-Pac

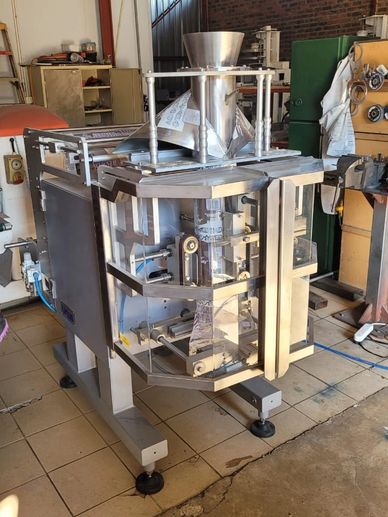

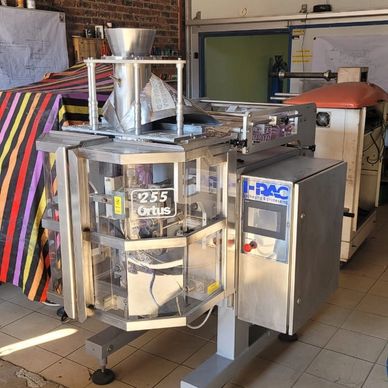

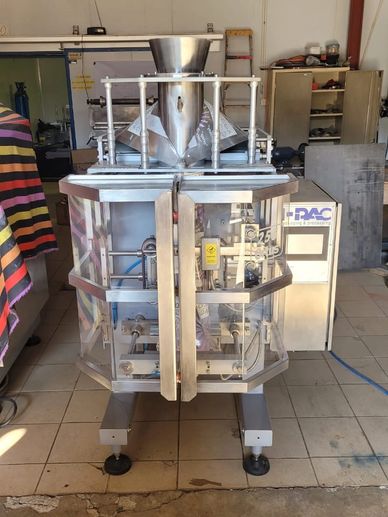

255 Ortus bagger
Sanitary, stainless steel, closed housing, low profile design.
- Option available for anti-corrosive version with aluminium & stainless steel frame
- Option available for painted frame with plated steel
Five bag styles and multiple film types possible on one machine
All parts & components from A-brands
Direct drive belt system, self-centering belt tensioning
Inverter/servo controlled intermittent film drive
PLC monitors jaw obstructions, film breakage, film run out & guard circuits
3-INT bagger
The "3-INT' bagger, I-Pac's first design, is now predominantly utilised by those of our clients who wish to package sample product for use in marketing exercises & customer surveys
The 3-INT...
Floor screw feeder
Our locally designed & manufactured floor screw feed system is fully stainless steel, and can be adapted to suit client requirements & factory layout
There are 3 designs available:
- For light, free flowing product
- For medium flowing product (hopper is fitted with a paddle)
- For oily, dense product (hopper is fitted with a paddle & external vibrator)
Fresh produce / snack spinner
Comprising
- Heavy duty stainless steel 316 internal spindle, with HDPE ring
- Lid with safety cut-out switch
- Automatic equipment start once lid is closed
- 380V, 3-phase, 0,7kW motor & brake unit
- 90mm drain outlet
- Forward & reverse function
- Heavy duty food grade plastic basket
Cap counter conveyor
This particular cap counter conveyor was designed to suit a client's requirements for the counting of various sizes of bottle caps.
The conveyor can be modified to suit various applications, e.g. counting of pre-packed pies into boxes
Such a conveyor minimises the potential for under / over counting of items
Seed mill
This particular project was undertaken when a client approached us to design and manufacture a seed milling machine to replace their existing equipment, which was outdated & unable to meet their production requirements.
